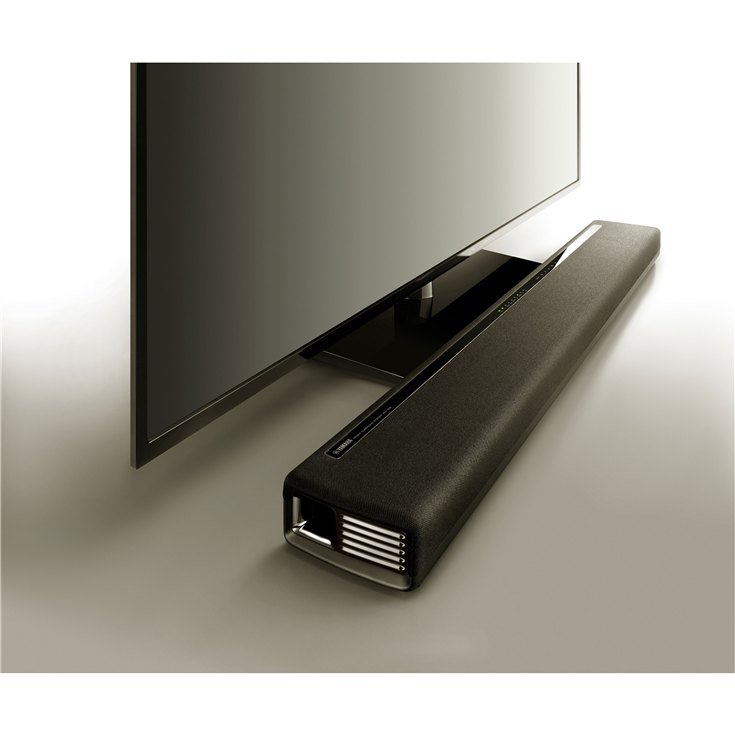

MusicCast YAS-306
|
|
Front Surround System
|
|
General
|
Drivers
|
Dual 5.5 cm (2-1/8") woofers, Dual 1.9 cm (3/4") tweeter, Dual 7.5 cm (3") built-in subwoofers
|
|
Output Channel
|
7.1-channel
|
|
Output Power
|
(Front L/R) 30 W + 30 W (6 ohms, 1 kHz, 10 % THD); (Subwoofer) 60 W (3 ohms, 100 Hz, 10 % THD)
|
|
Power Consumption
|
22 W
|
|
Standby Power Consumption
|
0.3 W (LAN, Wi-Fi, Bluetooth Off), 1.9 W (LAN, Wi-Fi off, Bluetooth on)
|
|
Dimensions (W x H x D)
|
950 x 72 x 131 mm; 37-3/8" x 2-7/8" x 5-1/8"
|
|
Weight
|
4.9 kg; 10.8 lbs.
|
|
Input / Output
|
Digital Optical
|
1 in
|
|
Digital Coaxial
|
1 in
|
|
Analog Audio
|
1 in
|
|
Subwoofer output
|
Yes
|
|
Sound Technology
|
Surround Technology
|
AIR SURROUND XTREME
|
|
Sound Programmes
|
Music, Movie, Sport, Game, TV
|
|
Compressed Music Enhancer
|
Yes (for Bluetooth)
|
|
Bass Extended
|
Yes
|
|
Audio Formats
|
Dolby Digital
|
Yes
|
|
Dolby Pro Logic II
|
Yes
|
|
DTS
|
Yes
|
|
File Format
|
MP3, WMA, MPEG4 AAC, Apple LossLess(*1), WAV(*2), FLAC(*2), AIFF(*2) --- (*1) up to 96 kHz (*2) up to 192 kHz
|
|
Connectivity
|
Wireless Music Streaming
|
Yes
|
|
Wi-Fi
|
Yes
|
|
AirPlay
|
Yes
|
|
Bluetooth Version/Profile
|
(Version) Ver. 2.1 + EDR / A2DP, AVRCP; (Codec) SBC, AAC
|
|
Bluetooth Maximum Communication Range
|
10 m (33 ft) without obstructions
|
|
Ethernet
|
Yes
|
|
Other Features
|
App Control
|
Yes
|
|
TV Remote Repeater
|
Yes
|
|
Learning Function
|
Yes
|
|
 |
|
|
